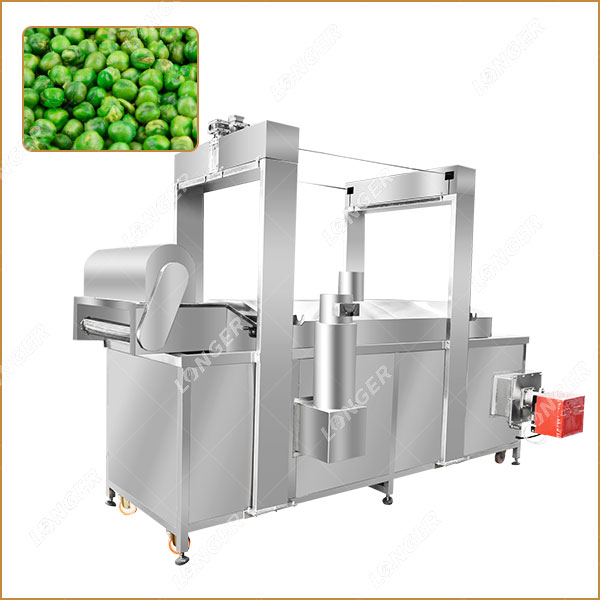

Continuous Green Peas Frying Machine Gas Heated

The green peas frying machine can realize continuous production and is suitable for automatic frying production line. The fryer is also suitable for frying peanuts, broad beans and other nuts, with automatic filtration and slag removal, automatic temperature control, and adjustable oil temperature. The mesh belt can be raised and lowered automatically and is easy to clean.

Features of Continuous Peas Frying Machine:

• It realizes continuous production, increases production capacity, and avoids pollution caused by manual contact with food.
• Two structures of double-layer mesh belts are adopted to ensure even frying.
• Automatic temperature control system, frying temperature and time are digitally displayed and can be automatically controlled.
• The green peas fryer is heated by gas. Imported burner, automatic ignition, automatic temperature control, safety and environmental protection, high thermal efficiency.
• Equipped with an oil circulation filter system, which continuously filters the oil residue, reduces the acid value of the oil, restores the color of the crude oil, and prolongs the service life of the oil.
• The mesh belt is automatically lifted with the rack, which is convenient for cleaning and maintenance, and the operation is simple and safe.
• The whole machine is made of food grade 304 stainless steel.

Structure of Gas Green Peas Frying Machine

The fryer is mainly composed of oil temperature automatic control system, automatic lifting system, heating system, mesh belt conveying system and automatic filtering system, oil circulation system, slag scraping system, smoke exhaust system, hood and so on.

Green Peas Frying Process:

The oil is heated by the heating system, and the green peas are in a frying process in the middle of the upper and lower mesh belts with the conveying of the conveyor belt from the feeding port to the discharging port. Then, the fried green beans enter the deoiler to complete deoiling. During the frying process, the residue on the surface of the material will sink to the bottom, and the scraping system will discharge the residue to increase the service life of the oil.

Application Scope of Green Peas Fryer Machine:

1. Suitable for frying nuts such as peanuts, cashews, fava beans, chickpeas, coated peanuts, etc.
2. Fried fruit and vegetable chips, such as potato chips, french fries, banana chips, sweet potato chips, etc.
3. Fried meat products, such as meat pieces, chicken wings, , fish, etc.
4. Other things like tofu, chin chi, gluten, twist, etc.

Parameter of Continuous Green Peas Frying Machine

Model	Power	Size（MM）	Weight（KG）	Capacity（KG）	Mesh Belt Width （MM）	Oil discharge（L）	Gas consumption (cube)
LG-LZG3500B	convey 1.5KW	3700*1700*2300	1200	200	800	1200	23
	hoist 0.75KW
LG-LZG4000B	Convey 1.5KW	4200*1700*2300	1400	300	800	1420	23
	Hoist 0.75KW
LG-LZG5000B	Convey 1.5KW	5200*1700*2300	1600	500	800	1850	34
	Hoist 1.5KW

Use this Green Peas Frying Machine

1. Check whether the valves of the fryer are closed
2. Turn on the power (make sure the mesh belt of the fume hood is lowered to the working state)
3. Turn on the heating (there must be oil in the tank)
4. The oil temperature rises to the specified temperature
5. Open the main network belt
