The fried peanut packing machine is a fully automatic combination scale packaging equipment, which is used for packaging various granular materials. It can automatically complete the functions of bag making, measuring, cutting, sealing, cutting and counting. The microcomputer controller can control the bag length. Stable performance, convenient adjustment, accurate detection.
Structure of Automatic Peanut Packing Machine:

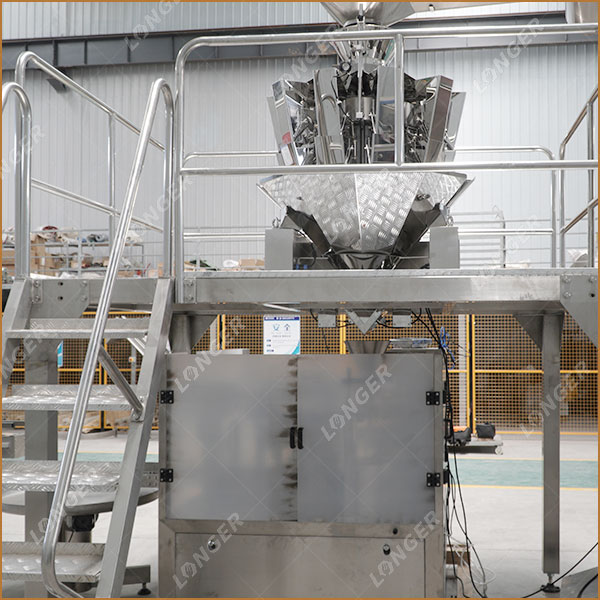

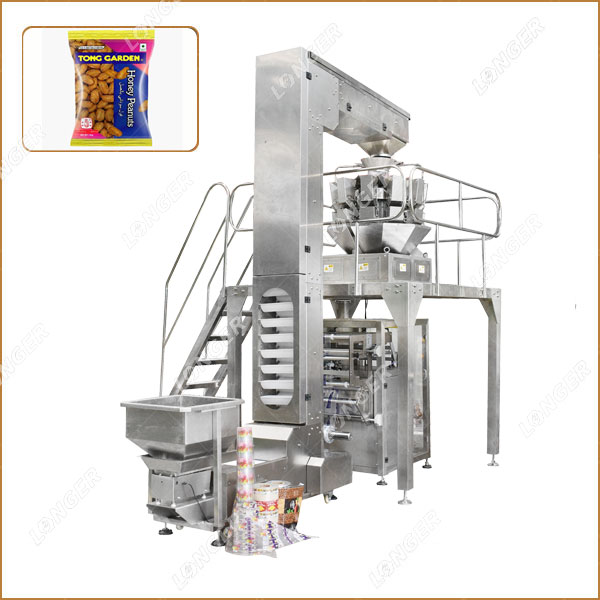

The main components of the packaging system are: vibrating feeder, Z-type material conveyor, computer combination scale, working platform, packaging machine, and finished product conveyor. Optional metal detectors, processors, etc.

Fried Peanut Packaging Machine Performance:
- Combination scale ensures stable and accurate package weight.
- Medium-speed and high-speed machines are optional to meet different production volume requirements.
- The packaging machine can be equipped with various functional options, such as inserting corners, punching holes, etc.
- According to the needs, the combination scale can be equipped with a collecting hopper, a checkered plate hopper, etc., which are suitable for different materials;
- Bag-making form: This machine can make pillow-shaped bags, stand-up bags, and perforated belts according to customer needs.
- Configure factory parameter settings
Fried Peanut Packing Machine Advantages:
- Imported PLC full computer control system, man-machine interface, touch screen operation is simple and intuitive.
- Perfect automatic alarm and protection function minimizes loss.
- High-speed fully automatic, the metering device can automatically complete the whole process of weighing, feeding, bag making, filling, date printing, counting, and finished product output.
- Powerful data statistics function, automatically record the total weight, total number of packages, qualification rate and other indicators of each batch of production.
- The food contact part adopts high-quality 316#/304# stainless steel manufacturing process to ensure food hygiene and safety.

Parameter of Peanut Packing Machine
Model | LG-LK720 | LG-LK520 |
Film width | max 720mm | max 520mm |
Bag width | 110-350mm | 90-250mm |
Bag length | 100-420mm | 80-350mm |
Packing speed | 10-50bags/min | 10-70bags/min |
Packing range | 150-4000ml | 150-2000ml |
Film thickness | 0.04-0.10mm | 0.04-0.10mm |
Power | 4kw/220v 50-60Hz | 3kw/220v 50-60Hz |
Machine size | 1780*1350*2000mm | 1430*1200*1700mm |
Machine weight | 800kg | 650kg |
Air consumption | 0.8m³/min 0.8mpa | 0.4m³/min 0.6mpa |
Application of Peanut Packing Machine Price:
It is suitable for the automatic weight-fixed packing requirements of various scattered granules and block materials. Such as puffed food, potato chips/bars, biscuits, candy, dried fruit, nuts, quick-frozen food, pet food, etc.
