The peanut frying production line is a complete set of solutions, completing the processing from raw material processing to packaging. The whole set of peanut frying line is fully automated, efficient, continuous production, labor-saving, and is an ideal choice for medium and large fried food factories.
- The fried peanuts are more crispy and of higher quality.
- The whole line is fully automatic, continuous production, digital control system, easy to operate.
- A variety of capacities are available, such as 200 kg/h, 300 kg/h, 500 kg/h, etc. The whole set of equipment can be customized according to your capacity requirements and factory.

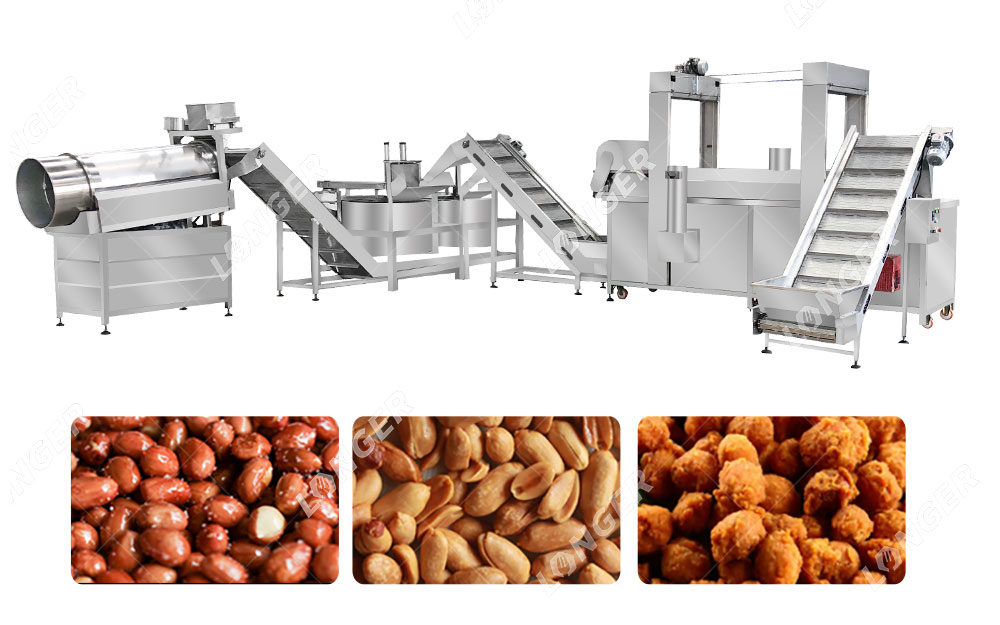

Working Process of Peanut Frying Line
Raw materials – Soaking – Dewatering – Lifting – Quantitative Feeding – Deep frying – Deoiling – Coveying – Seasoning – Cooling – Packing

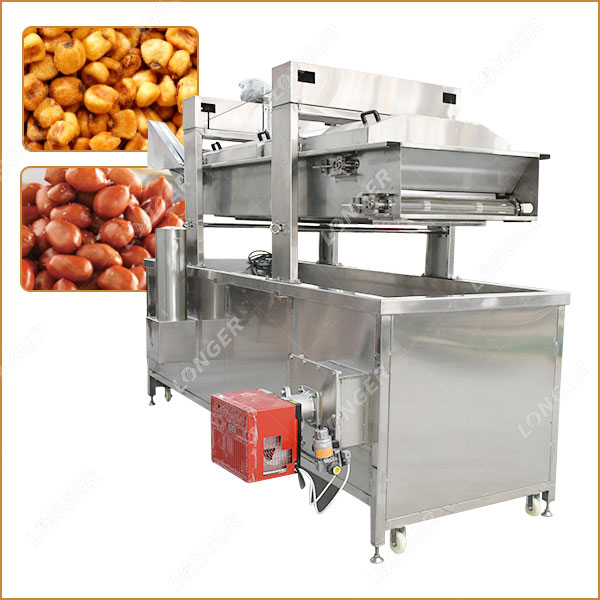

1. Continuous Peanut Fryer
This frying machine is mainly suitable for larger food production enterprises. The peanut material is fried in the middle of the upper and lower mesh belts along with the conveyor belt from the inlet to the outlet.
The mesh belt conveying adopts frequency conversion speed regulation motor, the frying time can be set freely, and the temperature is automatically controlled.

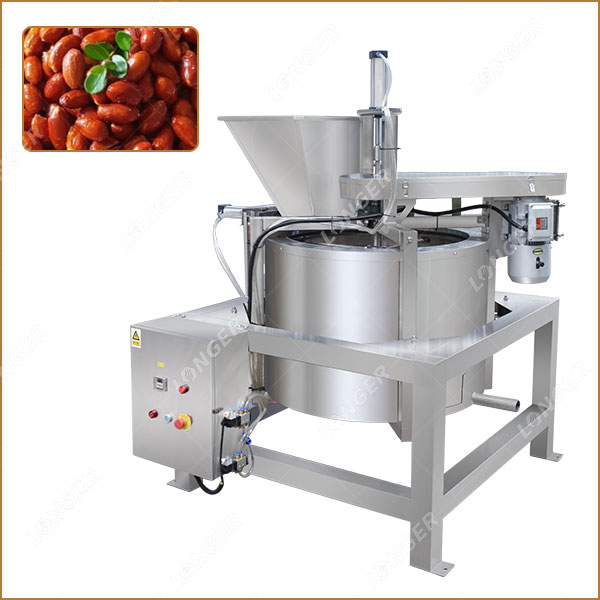

2. Fried Peanut Deoiler Machine
The deoiler works on the principle of centrifugal motion. After the deoiling is completed, the hydraulic mechanism lifts to open the lower seal of the deoiling barrel, and the material falls from the bottom.
The whole process is fully automatic, with a high degree of automation, and the deoiling time can be set freely.

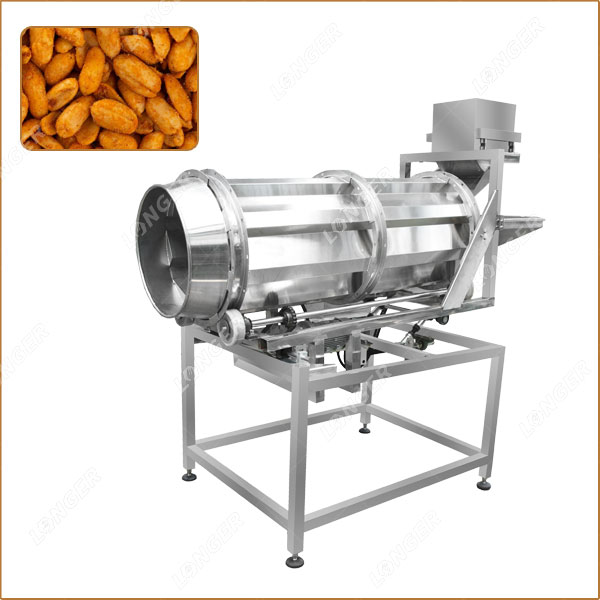

3. Peanut Seasoning Machine
Inclined seasoning drum, fully automatic control of speed and material capacity.
Equipped with a spiral powdering device, it is not easy to be blocked, so that the seasoning is evenly sprinkled on the fried peanuts.
The drum speed can be adjusted by frequency conversion, and the requirements of different tastes of food can be met by controlling the speed of the drum and the amount of seasoning powder sprinkled.

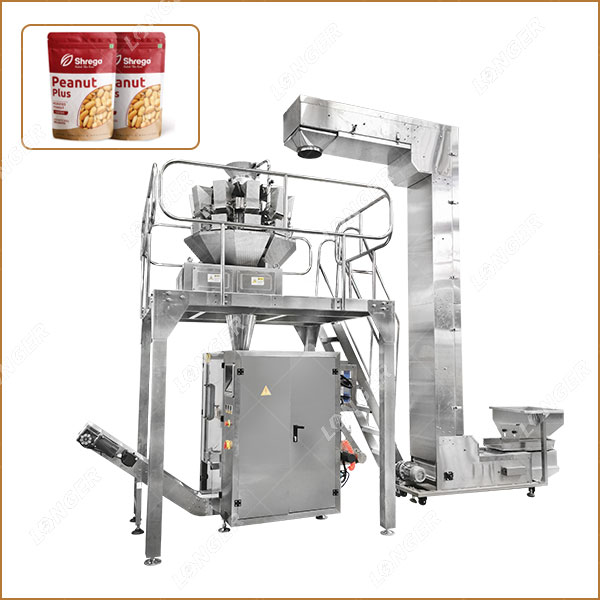

4. Fried Peanut Packing Machine
The packaging machine can automatically complete the whole process of weighing, feeding, bag making, filling, date printing, counting, and finished product output.
- Imported PLC full computer control system, man-machine interface, touch screen operation is simple and intuitive.
- It has a variety of automatic diagnosis and automatic alarm safety protection functions to ensure personal safety to the greatest extent and reduce material loss.
- It can be equipped with a remote diagnosis system to troubleshoot the machine in the shortest time.
Performance Advantages of Peanut Frying Production Line
- The whole machine is made of stainless steel, strong and durable;
- Equipped with high-efficiency burners, fast heating and high production efficiency;
- The entire mesh belt part can be raised by lifting, which is convenient for the maintenance of the peanut frying line;
- Frying time, frying temperature, water temperature cooling, deoiling, etc. are all automatically controlled;
- The oil filtration system automatically filters residues to prolong the service life of the oil, and the fried peanuts are bright in color, good in taste and high in quality.
Provide technical services for the entire peanut frying production line, including process guidance, process experiment, installation guidance, after-sales service, etc.
